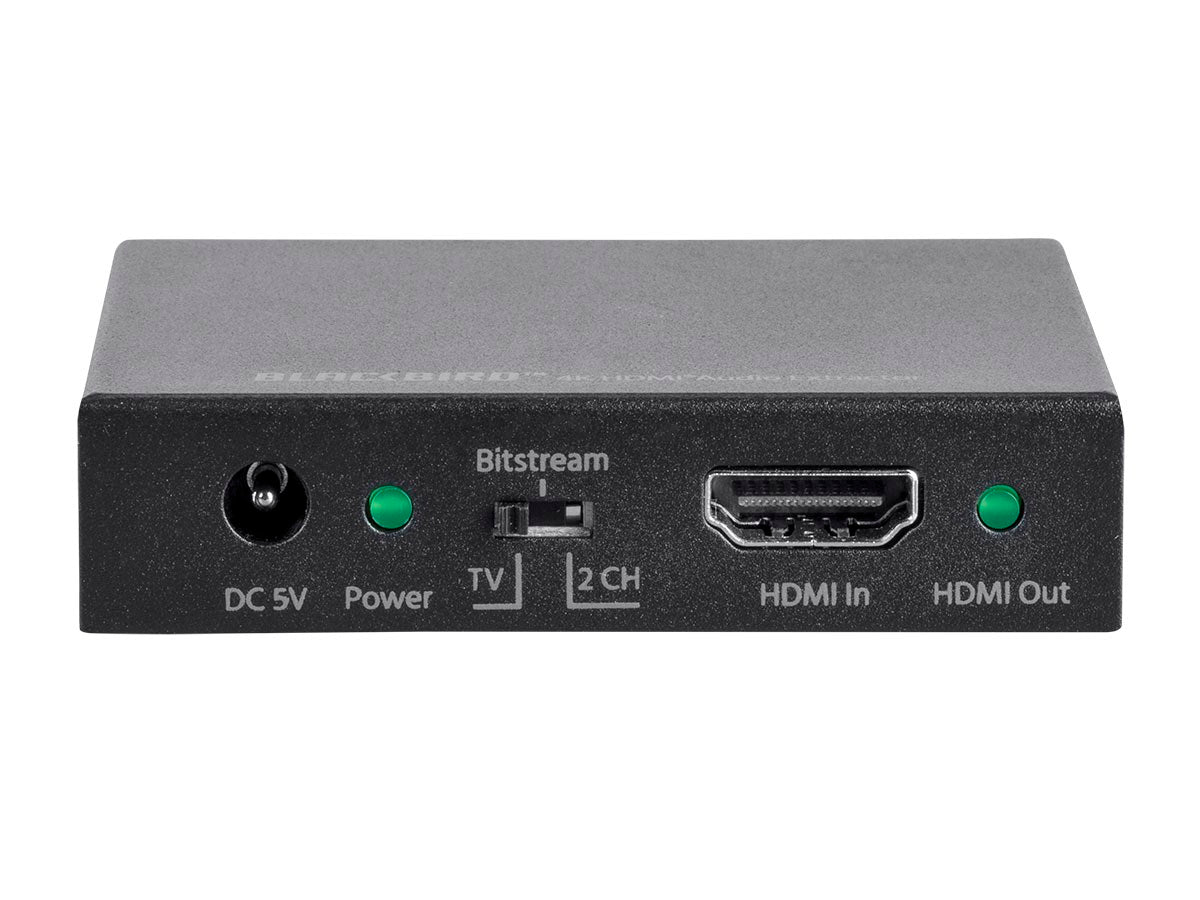

4K HDMI® Audio Extractor

Our 4K HDMI® Audio Extractor seamlessly extracts audio signals from HDMI video streams, making it a perfect addition to your home theater or audio setup. It supports both analog stereo audio and high-definition multichannel audio through its S/PDIF digital optical output. Enjoy stunning video resolutions up to 4K@60Hz YCbCr 4:4:4 with 10-bit High Dynamic Range (HDR) passthrough and superior audio quality with sampling rates up to 192kHz. Fully compliant with HDMI 2.0b and HDCP™ 2.2 standards, it offers up to 18Gbps video bandwidth for optimal performance.

Specifications:

• HDMI® Version: 2.0b
• HDCP™ Version: 2.2
• Maximum Video Resolution: 4K@60Hz YCbCr 4:4:4 including 1080p@120Hz and 1080p 3D@60Hz
• Color Depth: Up to 12‑bits per channel (36‑bits total)
• Input Power: 5 VDC, 1A
• AC Adapter Input Power: 100 ~ 240 VAC, 50/60Hz
• Maximum Power Consumption: 1 watt
• Operating Temperature: +32 ~ +104°F (0 ~ +40°C)
• Storage Temperature: ‑4 ~ +140°F (‑20 ~ +60°C)
• Operating Humidity: 20 ~ 90% RH, noncondensing
• Dimensions: 2.9” x 2.4” x 0.7” (74 x 61 x 17 mm)
• Weight: 4.6 oz. (130g)
• Regulatory Compliance: CE, FCC, UL®

(Kit 801 Replacement)
